Sioux Chief 533-3

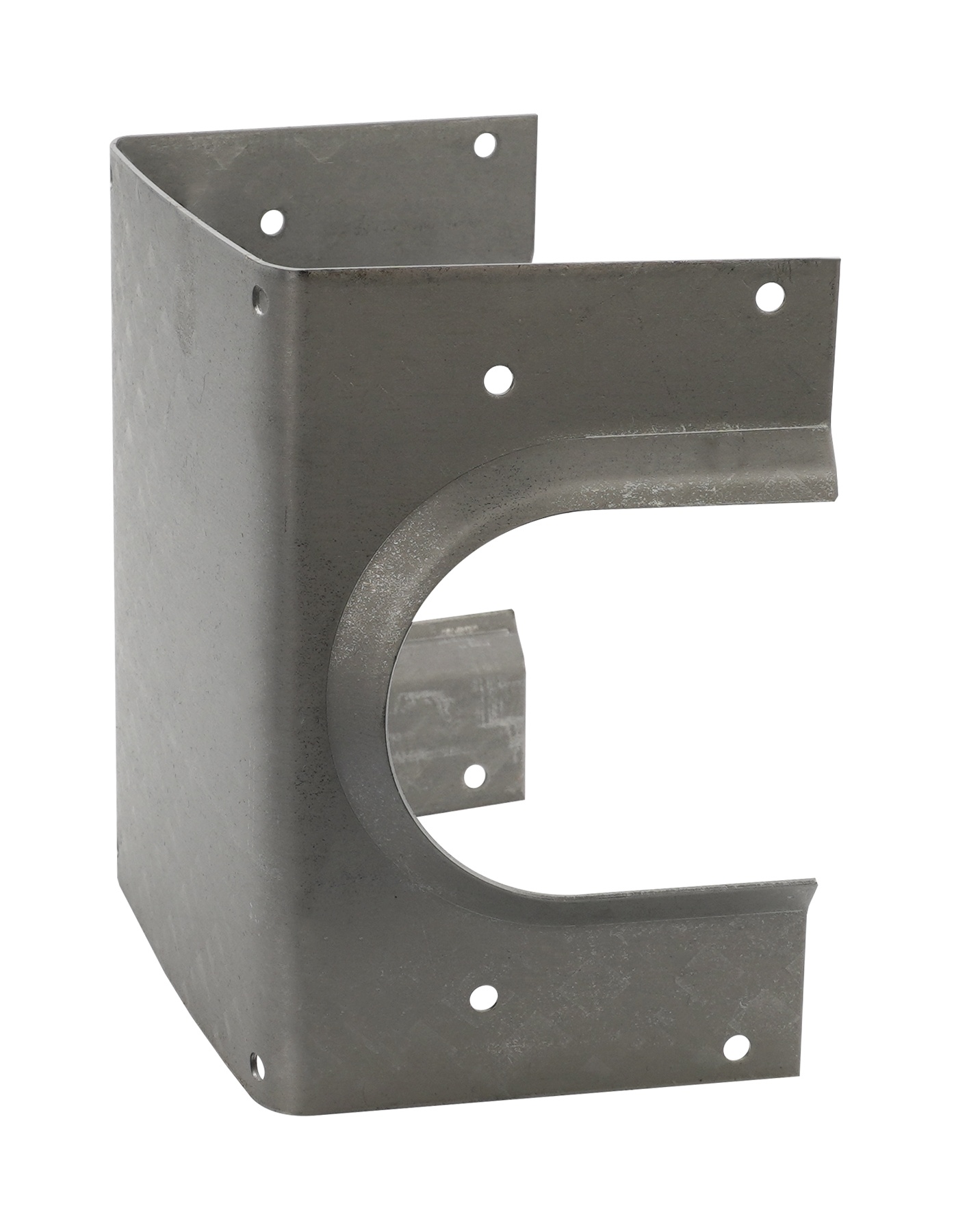

Sioux Chief 533-3 Triple Stud Shoe, 945 lb, Steel, Domestic

  • MPN: 533-3
  • TPN: 10578
  • UPC: 739236201966
  • Min Order Qty: 1
  • Quantity Interval: 1
  • Sold As: EACH
  • Login to see Availability

Sioux Chief Stud Shoe, Triple, Series: 533, 945 lb, Steel, 5-3/8 in H x 4-1/2 in W x 3.38 in D, Domestic

Type      :      Triple
Series      :      533
Material      :      Steel
Dimensions      :      5-3/8 in H x 4-1/2 in W x 3.38 in D
  • Formed rib provides added strength
  • Install over pipe up to 2-3/8 in OD
  • Pipe opening (dimension D) is 2-1/2 in for use with any piping that is 2 in schedule 40 or smaller
  • pdf Specification Sheet https://www.texasplumbingsupplyinc.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Sioux_Chief_533-1_Specification_Sheet.pdf

Sioux Chief 533 series Stud Shoe supports shall be designed to conform to national plumbing code requirements. Stud Shoes shall be used to reinforce studs that have been bored or notched to allow for DWV piping. Stud Shoe shall be secured to joist with nails or screws. All nail holes must be used and fasteners (not provided) shall be no less than 1-1/2 in length. Sioux Chief's 533 series Stud Shoe bracket is NOT a total replacement of removed construction materials.
