Schier Great Basin™ Grease Interceptor, High Capacity, Series: GB Series, 4 in Inlet Connection, 4 in Outlet, 3048 lb, 100 gpm, H20 Traffic Rated Covers, Plain, Polyethylene, 49-1/2 in H x 94-1/4 in W x 46 in D, Domestic
| Type | : | High Capacity |
| Series | : | GB Series |
| Inlet Connection | : | 4 in |
| Outlet Connection | : | 4 in |
| Capacity | : | 3048 lb |
| Flow Rate | : | 100 gpm |
| Connection Type | : | Plain |
| Material | : | Polyethylene |

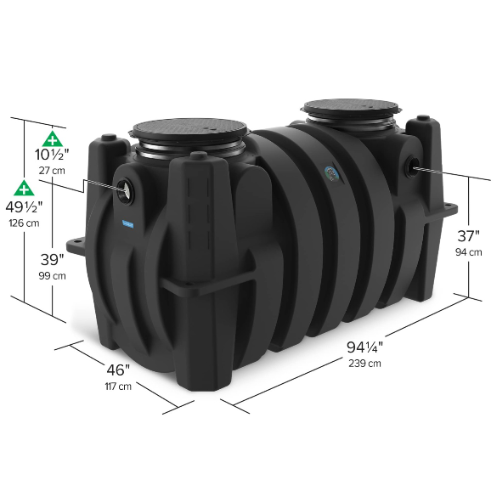

| Dimensions | : | 49-1/2 in H x 94-1/4 in W x 46 in D |
| Domestic/Import | : | Domestic |
- 190 deg F continuous maximum operating temperature
- Built-in flow control
- For gravity drainage applications only
- Do not use for pressure applications
- Cover placement allows full access to tank for proper maintenance
- Vent not required unless per local code
- Engineered inlet and outlet diffusers are removable to inspect/clean piping
- Light duty, bolted, gas/water tight polyethylene covers
- Indoor outdoor installation
Owners/User Manual
All grease interceptors have a maximum grease holding capacity. Once that maximum capacity is exceeded, fats, oils and grease (FOG) will bypass to the collection system, creating the potential for blockages. It's critic alto determine an accurate pump-out schedule that ensures the interceptor gets pumped out only as often as necessary, but before it reaches its maximum rated capacity. Your Great Basin™ grease interceptor should have been sized according to the Grease Production Sizing Method (GPSM) and assigned a pump-out schedule prior to installation. If it wasn't, or if circumstances have changed, use the following formula to get your pump-out schedule back on track.
